Machine Shop

  • 32,000 Sq. Ft Building Space
  • Max Machining Weight – casting of 25 Tons capacity
  • Max Component Dimensions – 2500 mm
  • 3 Trevisan DS 1500 & 2 Trevisan DS 600
  • Hydro Testing Capabilities up to 2500 Pr. Class

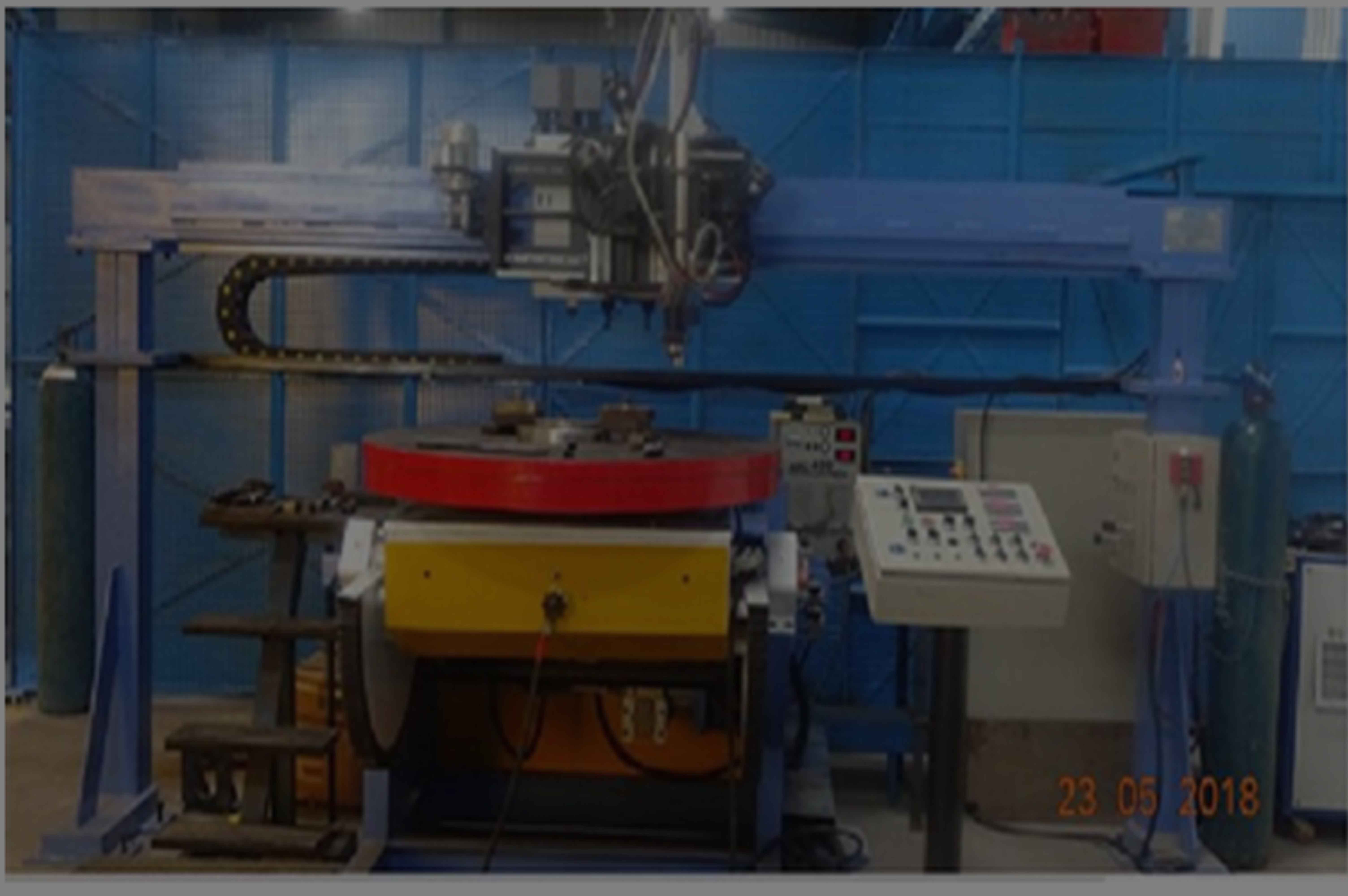

  • Stellite / Overlay Welding with PTA, TIG & MIG and Final Machining capability available



CNC Machines

Aruna alloy steels activities

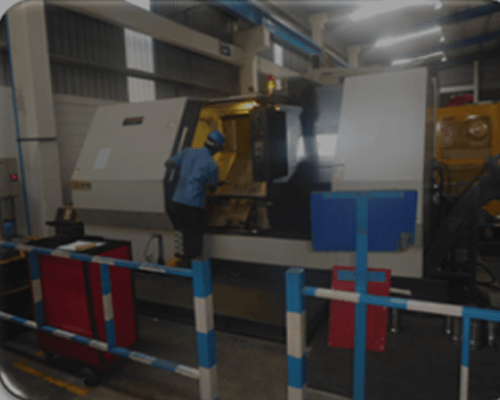

CNC LATHE

  • Type : CNC
  • Make : LEADWELL
  • Chuck Dia : 540 mm
  • Swing Dia : 720 mm
  • Total Length : 1400 mm
  • Job Length : 1000 mm
  • Accuracy : 0.001 mm
Aruna alloy steels activities

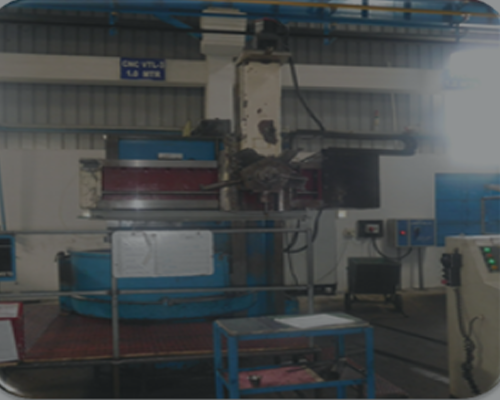

VTC-1.6 MTR

  • Type : CNC
  • Make : HNK
  • Chuck Dia : 1600 mm
  • Swing Dia : 2000 mm
  • Total Length : 1660 mm
  • Job Length : 1650 mm
  • Accuracy : 0.001 mm
Aruna alloy steels activities

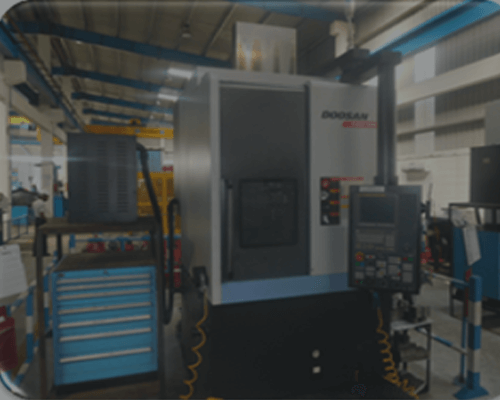

VTL PUMA V-400

  • Type : CNC
  • Make : DOOSAN
  • Chuck Dia : 420 mm
  • Swing Dia : 610 mm
  • Total Length : 400 mm
  • Job Length : 330 mm
  • Accuracy : 0.001 mm
Aruna alloy steels activities

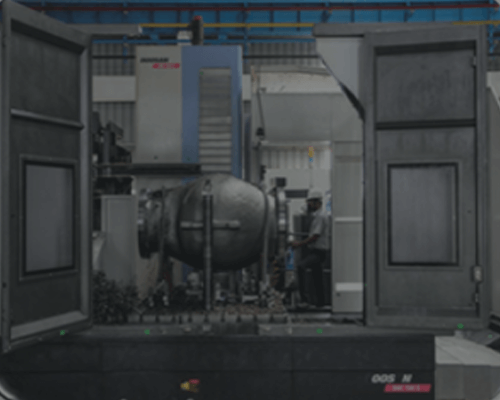

BORING M/C DBC 130 II

  • Type : CNC
  • Make : DOOSAN
  • Chuck Dia : 1200 mm
  • Total Length : 1600 mm
  • Job Length : 1800 mm
  • Accuracy : 0.01 mm
Aruna alloy steels activities

VTL-550

  • Type : CNC
  • Make : HWACHEON
  • Chuck Dia : 650 mm
  • Swing Dia : 820 mm
  • Total Length : 700 mm
  • Job Length : 700 mm
  • Accuracy : 0.001 mm
Aruna alloy steels activities

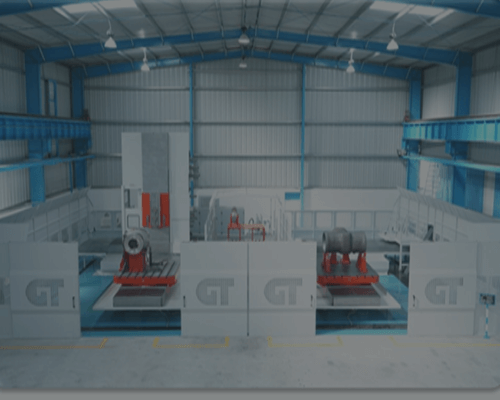

TREVISAN DS 600/200C

  • Type : CNC
  • Make : TREVISAN
  • Pallet size : 900 X 900 mm
  • X/Y/Z/U/UC : 1340/1000/
  • Axis Stroke 1100/200/ 35 mm
  • Accuracy : 0.001 mm
Aruna alloy steels activities

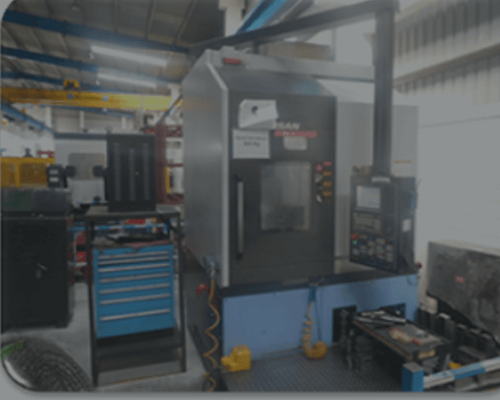

VTL PUMA V-550

  • Type : CNC
  • Make : DOOSAN
  • Chuck Dia : 550 mm
  • Swing Dia : 800 mm
  • Total Length : 490 mm
  • Job Length : 700 mm
  • Accuracy : 0.001 mm
Aruna alloy steels activities

TREVISAN DS 600/200 C TILLTING TABLE

  • Type : CNC
  • Make : TREVISAN
  • Pallet Size : 1100 X 1200 mm
  • X/Y/Z/U/UC : 2250/1200/
  • Axis Stroke 1100/200/30 mm
  • Accuracy : 0.001 mm
Aruna alloy steels activities

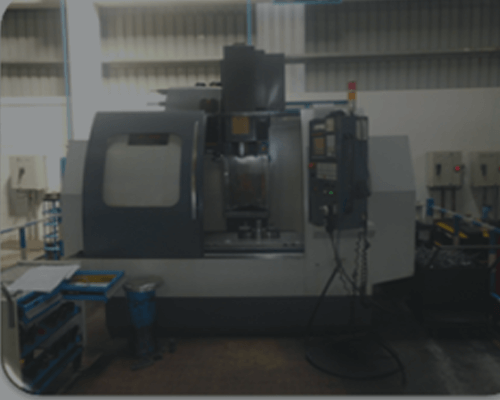

VMC

  • Type : CNC
  • Make : LEAD WELL
  • Total Length : 1020 X 510 mm
  • Job Length : 600 mm
  • Accuracy : 0.001 mm
Aruna alloy steels activities

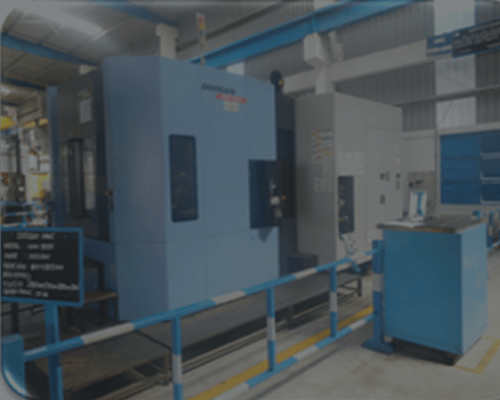

HMC – NHM 5000/60

  • Type : CNC
  • Make : DOOSAN
  • Total Length : 350 X 1100 mm
  • Job Length : 1100 mm
  • Accuracy : 0.001 mm
Aruna alloy steels activities

TREVISAN DS1500

  • Type : CNC
  • Make : TREVISAN
  • Pallet Size : 2400 X 2400 mm
  • X/Y/Z/U/UC : 11500/2400/3000/ Axis Stroke 7
  • Axis Stroke 00/450/53 mm
  • Accuracy : 0.001 mm


Conventional Machines

Aruna alloy steels activities

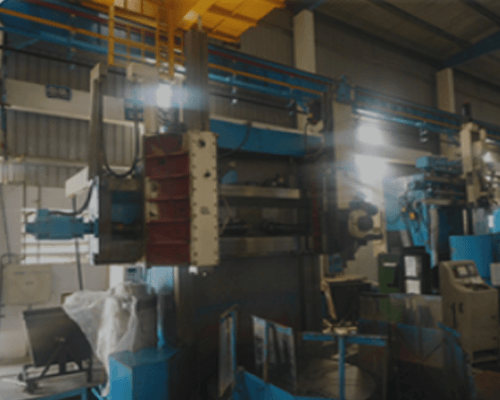

VTL 2.0 MTR

  • Type : CNC
  • Make : TOS HULIN
  • Chuck Dia : 2000 mm
  • Swing Dia : 2500mm
  • Total Length : 1500 mm
  • Job Length : 1400 mm
  • Accuracy : 0.01 mm
Aruna alloy steels activities

HZL BORING MACHINE

  • Type : CONVENTIONAL
  • Make : SIBURA
  • Total Length : 2500 mm
  • Job Length : 1500 mm
  • Accuracy : 0.1 mm
Aruna alloy steels activities

VTL 1.6 MTR 2

  • Type : CNC
  • Make : GREY
  • Chuck Dia : 1600 mm
  • Swing Dia : 1700 mm
  • Total Length : 1400 mm
  • Job Length : 1200 mm
  • Accuracy : 0.01 mm
Aruna alloy steels activities

RADIAL DRILLING M/C 1

  • Type : CONVENTIONAL
  • Make : BATLI BOI
  • Swing Dia : 820 mm
  • Total Length : 950 mm
  • Job Length : 950 mm
  • Accuracy : 0.01 mm
Aruna alloy steels activities

VTL 1.0 MTR 3

  • Type : CNC
  • Make : TOS HULIN
  • Chuck Dia : 1000 mm
  • Swing Dia : 1500 mm
  • Total Length : 850 mm
  • Job Length : 800 mm
  • Accuracy : 0.01 mm
Aruna alloy steels activities

RADIAL DRILLING M/C 2

  • Type : CONVENTIONAL
  • Make : BATLI BOI
  • Swing Dia : 820 mm
  • Total Length : 950 mm
  • Job Length : 950 mm
  • Accuracy : 0.01 mm
Aruna alloy steels activities

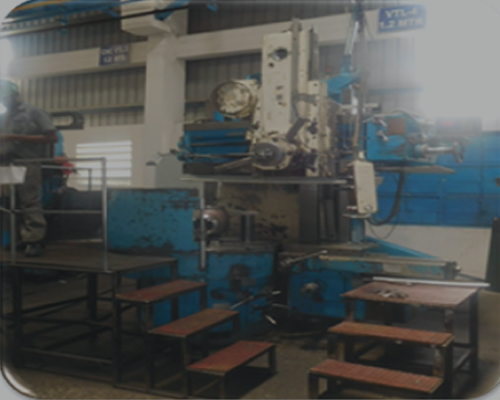

VTL 1.2 MTR 4

  • Type : CONVENTIONAL
  • Make : CINHA
  • Chuck Dia : 1125 mm
  • Swing Dia : 1325 mm
  • Total Length : 1000 mm
  • Job Length : 900 mm
  • Accuracy : 0.02 mm
Aruna alloy steels activities

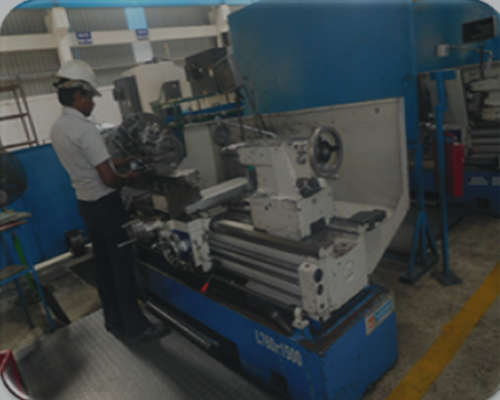

CONVENTONAL LATHE 1

  • Type : CONVENTIONAL
  • Make : WINHO
  • Chuck Dia : 440 mm
  • Swing Dia : 890 mm
  • Total Length : 1000 mm
  • Job Length : 800 mm
  • Accuracy : 0.01 mm
Aruna alloy steels activities

VTL 1.2 MTR 5

  • Type : CONVENTIONAL
  • Make : CINHA
  • Chuck Dia : 1125 mm
  • Swing Dia : 1325 mm
  • Total Length : 1000 mm
  • Job Length : 900 mm
  • Accuracy : 0.02 mm
Aruna alloy steels activities

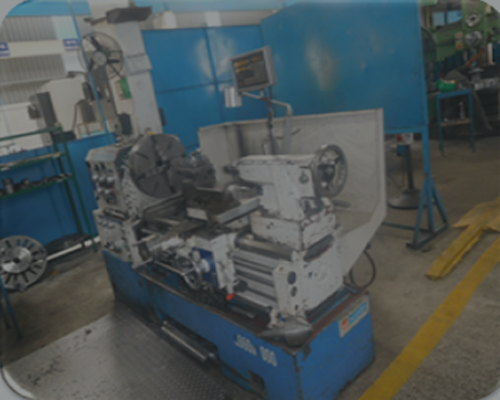

CONVENTIONAL LATHE 2

  • Type : CONVENTIONAL
  • Make : WINHO
  • Chuck Dia : 440 mm
  • Swing Dia : 890 mm
  • Total Length : 1000 mm
  • Job Length : 600 mm
  • Accuracy : 0.01 mm
